Environmental Testing
![Define the problem](/_image?href=%2F_astro%2Fseamless_support.OwIiX0H_.jpg&f=webp)
Seamless Test Support
Novium handles your hardware with care as we plan and execute your testing needs. We provide professional and accurate test reporting to support your mission requirements.
![Propose Solution](/_image?href=%2F_astro%2Fclean_room_start.K0l4Mrm6.jpg&f=webp)
Testing in a Clean Environment
The Thermal Vacuum System and Vibration Test System are housed in Novium’s ISO-7/Class 10,000 Clean Room, maintaining conditions for spaceflight equipment.
![Integrating + Executing](/_image?href=%2F_astro%2Fjosh_executing_brillance.BPoyj19X.jpg&f=webp)
Supporting Your Needs
Novium has technicians and equipment available for mechanical and electrical assembly.
Facilities and Equipment
![Novium Clean Room](/_image?href=%2F_astro%2Fclean_room.cJDLHq-d.jpg&w=500&f=webp)

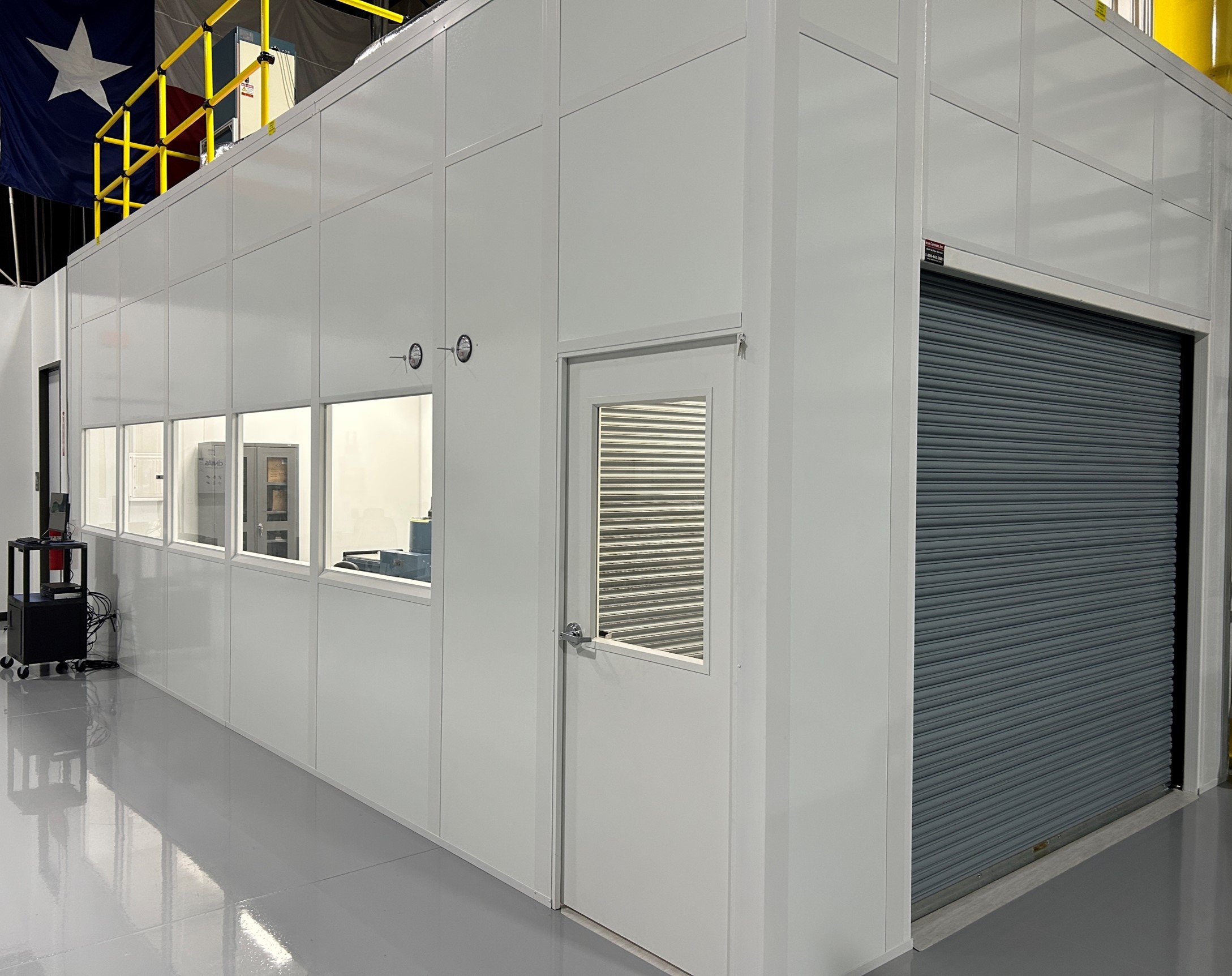

Clean Room
Solutions | Functional Testing & Hardware Assembly |
---|---|
Classification | ISO-7/Class 10,000 |
Size | 3.9 m x 6.7 m (13 ft x 22 ft) |
![Novium Vibration Testing](/_image?href=%2F_astro%2Fvibration_tests.VeIuIwhi.jpg&w=650&f=webp)

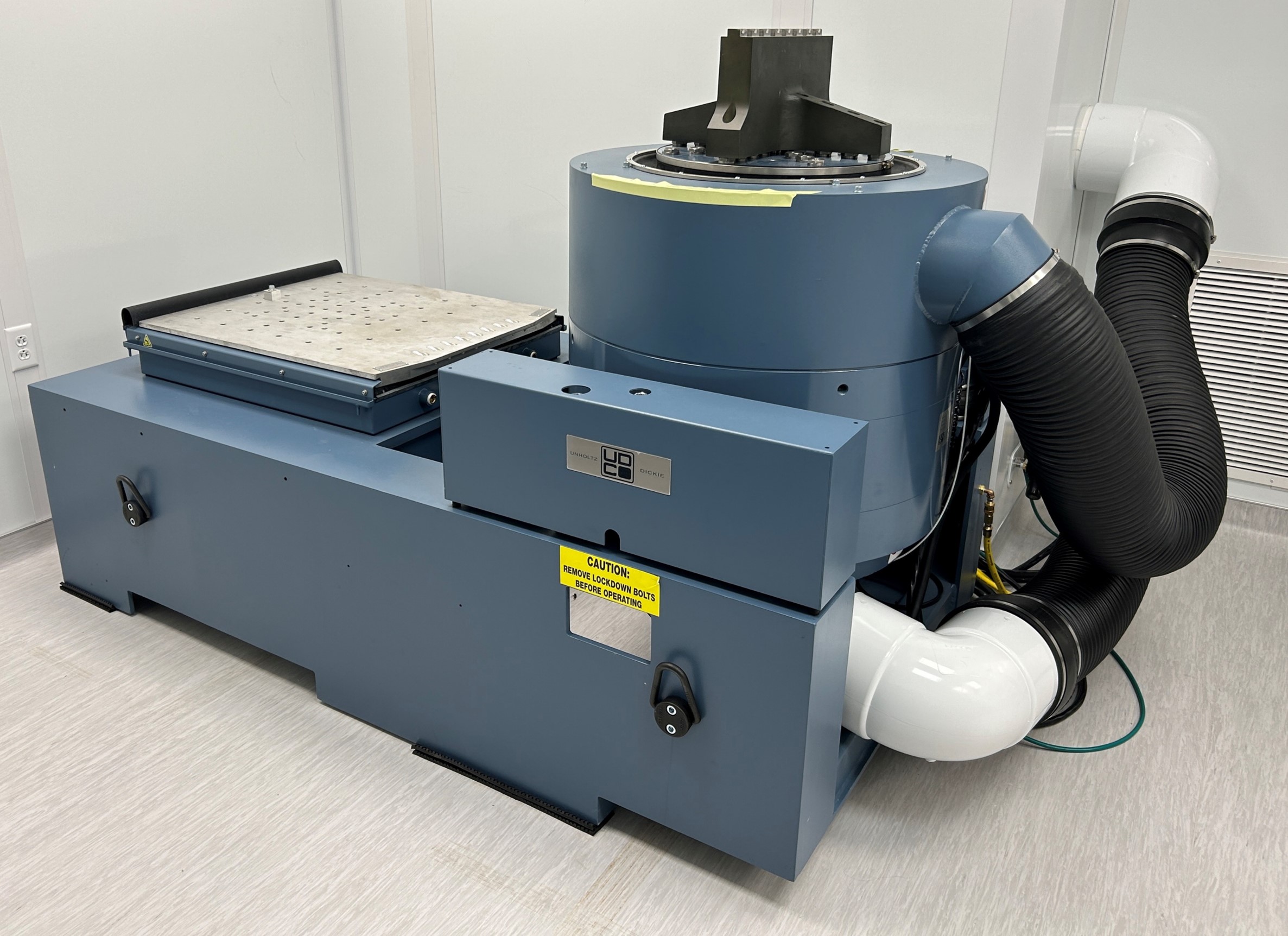

Vibration Test System
Vertical Armature Size | 444.5 mm (17.5 in) diameter |
---|---|
Horizontal Slip Plate Size | 711 mm x 711 mm (28 in x 28 in) |
Max Load | 362.8 kg (800 lbs) |
Performance |
24.4 kN (5500 lbf) Sine 24.4 kN (5500 lbf) Random 42.7 kN (9600 lbf) Shock |
![Novium Thermal Vaccuum](/_image?href=%2F_astro%2Fthermal_vacuum_system.pQ57IgbH.jpg&f=webp)

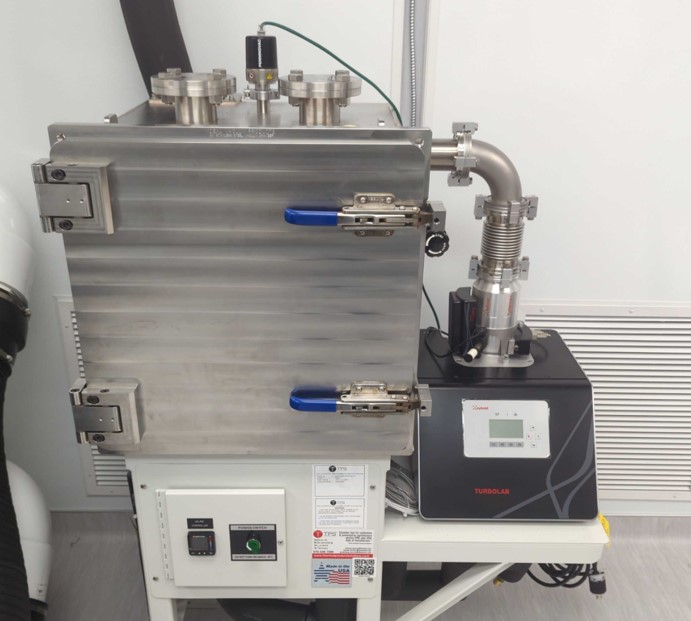

Thermal Vacuum System
Internal Volume |
457 mm x 457 mm x 457 mm (18 in x 18 in x 18 in) |
---|---|
Max Static Load | 34 kg (75 lbs) |
Max Vacuum | 1.3 mPa (1x10-5 Torr) |
Temp Range | -70°C to +150°C (-94°F to +302°F) |
Types of testing available
- Shaker Testing
- Thermal / Vacuum Testing
- Tech Support
- Shaker Testing Report
- Thermal Vac Test Report
- Test Fixture Design
